TURNING & MILL Centers

D.P. Tool & Machine, Inc. has a wide variety of Mazak Turning and Multi-Tasking production centers with Robotic Gantry loaders or bar feeders. Several different Turning and Multiplex Centers are displayed to communicate our rotational capabilities. Often, the most effective way to increase throughput is to study existing processes, and find ways to combine them on one machine. D.P. Tool’s Mazak Multi-Tasking Machines offer live tooling, dual spindles, and y-axis machining capabilities in addition to fast cycles. Multi-Tasking allows D.P. Tool to reduce; setups, queue time, labor content, and lead-time even further. The new addition of the Mega Turn 900M allows us to Vertically Turn and machine larger parts up to 36.22″ in Diameter x 31.5″ Long. Click here to view the Picture Gallery of sample parts and to review the Machine Specifications.

Technology at work will make your next project more profitable with D.P. Tool & Machine, Inc.!

Mazak Turning and Multi-Tasking Machining Centers:
(20 Total)

Multiplex Machines: All With GL-Robotic Gantry Systems

(2) Multiplex 630
Multiplex 6300Y
Multiplex 625

Super Quick Turn

(2) SQT15 MS
SQT18 MS
SQT28 M
SQT 200

Quickturn Turning Centers

(2) QT 10
(2) QT 20

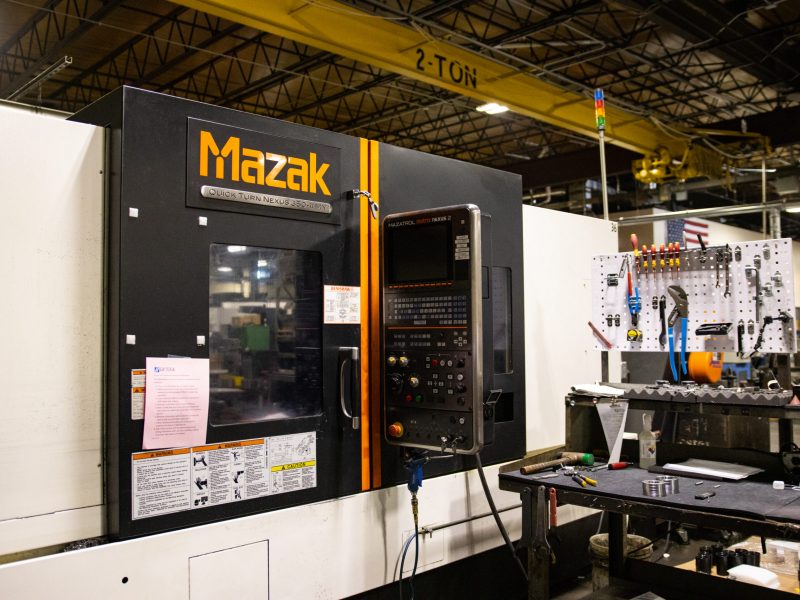

QuickTurn Nexus 200MS
QTN-350 MY-ll, 350-ll MSY, QTN-450-ll-M
Dual Turn 20 with Flex GL Robotic Gantry System

Large Turning Center

Cybertech 4500M (Large turning up to 33.8″ in Diameter x 120″ long between centers.)

Vertical Turning Center

Mega Turn 900M

Multi-Tasking, dual-spindle machine makes the Multiplex a smart choice for mid-sized lot production. You can use both spindles to machine the front and back side of your parts, including milling, for Done-In-One, single-setup production. Thanks to identical performance of both spindles, you can also use them to simultaneously cut two parts at one time. Their synchronized rotation delivers high-accuracy for operations like shaft work. Many of our machines are equipped with Gantry Robots for unmanned production which keeps D.P Tool & Machine, Inc. ahead of the competition.

A new addition to our current capabilities is our Mazak Cybertech 4500M which is designed for large shaft-workpieces up to 33.8″ in diameter and 120″ long, and has the rigidity and horsepower for heavy-duty cutting with Multi-Tasking capabilities for big-part machining. Now we can turn, mill, drill, tap and cut deep bores on larger parts in a single setup. The Cybertech Turn is a brute of a machine, yet ergonomically designed with tools highly visible which enables efficient set-ups.

The newest addition is the Mega Turn 900M vertical turning center which excels at heavy-duty cutting of large cast iron and steel workpieces found in the construction machinery, industrial machinery and jet engine industries.

TURNING & MILL CENTERS

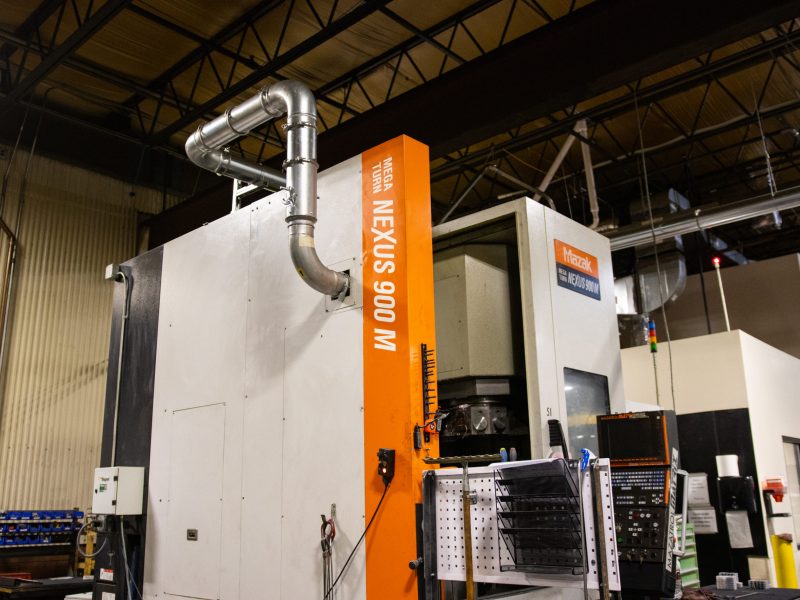

MAZAK MEGA TURN 900M

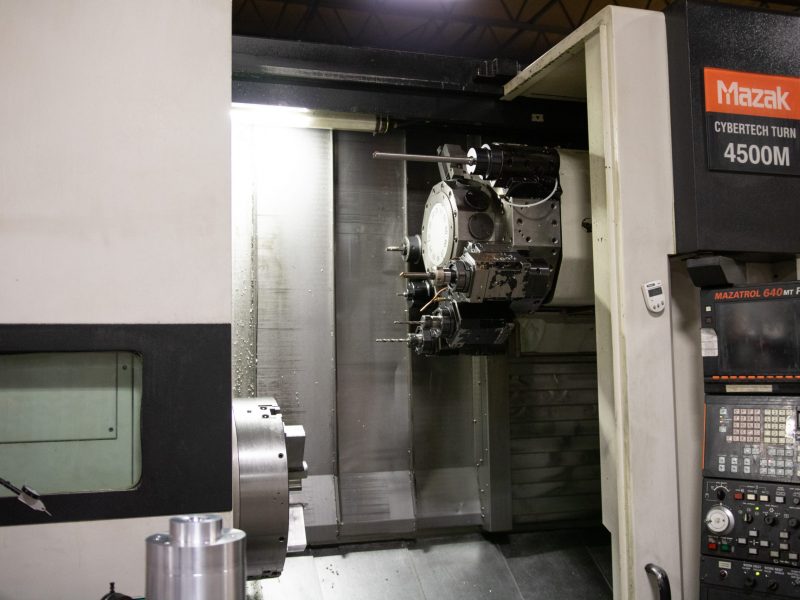

MAZAK CYBERTECH 4500M

MAZAK QTN-450-II-M

MAZAK QTN-350 MY-II

MULTIPLEX 6300Y CENTER W/ GANTRY GL-200 ROBOTIC LOADER

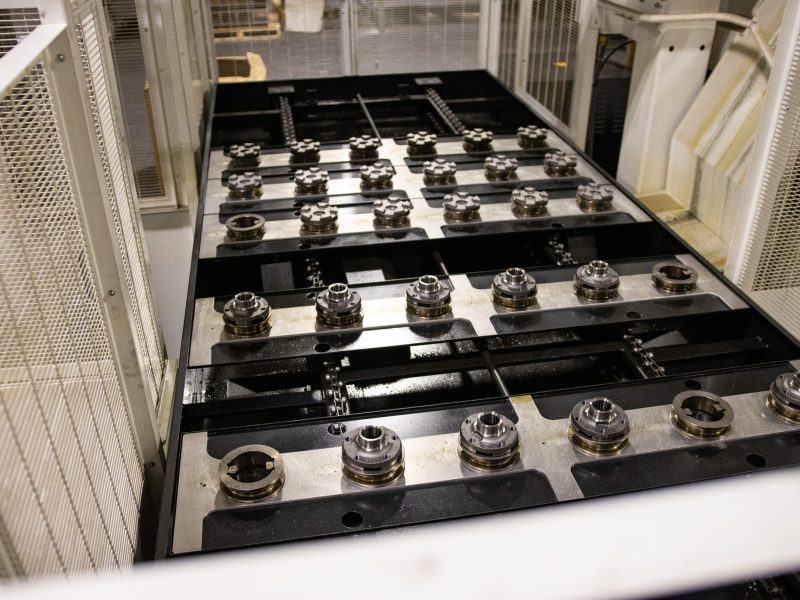

GL-200 ROBOTIC LOADER

Expand For Machine Specifications

Machine	Model	HP	Chuck size	RPM	Max Dia.	Centers	Max. Bar	Y	Rotary RPM
Mazak	Quickturn 10	15	8	2600	10	19	–	–	–
Mazak	Quickturn 20	20	8	4000	11.81	19.7	2	–	–
Mazak	Dual Turn 20	20	8	4750	12.6	49.21	2.2L/1.7R	–	–
Mazak	SQT18 MS	20	10/6	4000	13.25	28	2.5	–	3000
Mazak	Quickturn Nexus 200MS	20	8/6	4000	10	28	2	–	4500
Mazak	SQT28M	25	10	3500	13.25	60	3	–	1500
Mazak	QTN-350 MY-II	40	12	3300	16	25	4	+/-3″	4000
Mazak	Quickturn 10	10	6	6000	6.25	12	1.5	–	–
Mazak	Super Quickturn 200	7.5	8	5000	15	28	2	–	–
Mazak	SQT15 MS	15	8/6	4000	15	28	2	–	3000
Mazak	Multiplex 625	25	10/10	3000	12	30	2.5	–	3000
Mazak	Mulitplex 630	30	12/12	3000	14	42	3	–	3000
Mazak	Multiplex 630	30	12/12	3000	14	42	3	–	3000
Mazak	Multiplex 6300Y	30	10/10	4000	14	42	3	+/-3″	4500
Mazak	Cybertech 4500M	50	21	2400	33.8	120	7.25		3000
Mazak	Quick Turn 350-ll MSY	40	12	3300	29.5	58	4	–	4000
Mazak	QTN-450-II-M	40	18	2000	30	82	4.6	–	4000
Mazak	Mega Turn 900M	40	15-36	1250	36.22	NA	39.37	–	4000
Specs Continued
Machine	Model	Rotary HP	Rapid (IPM)	# Tools	Controls	Robotic Gantry Capacity	Tool Change Chip to Chip	Axis Capabilities	Tailstock/Sub Spindle
Mazak	Quickturn 10	–	390	8	Mazatrol T1	–	7	X,Z	Tailstock removed
Mazak	Quickturn 20	–		12	Mazatrol T+	–	7	X,Z	Tailstock
Mazak	Dual Turn 20	–	1200	12 x 2	Mazatrol T+	Yes	4	X,Z	20 HP
Mazak	SQT18 MS	5	1181	12	Mazatrol T+	–	4	X,Z,C	10 HP 5 degree indexing
Mazak	Quickturn Nexus 200MS	5	1181	12	Fusion 640T	–	4	X,Z,C	10 HP 5 degree indexing
Mazak	SQT28M	67.5	768	12	Mazatrol T+	–	6	X,Z,C	Live tailstock uses #4MT dead center
Mazak	QTN-350 MY-II	10	1181	12	Mazatrol Matrix	–	4	X,Y,Z,C	Live tailstock uses #5 MT dead center
Mazak	Quickturn 10	–	1181	12	Mazatrol T+	–	3	X,Z	Tailstock
Mazak	Super Quickturn 200	–	1181	12	Mazatrol T+	–	4	X,Z	Tailstock uses #5 MT live center
Mazak	SQT15 MS	5	1181	12	Mazatrol T+	–	4	X,Z,C	10 HP 5 degree indexing
Mazak	Multiplex 625	5	945	12 x 2	Mazatrol T+	33# x 2	4	Both heads: X,Z,C	25 HP + full C axis
Mazak	Mulitplex 630	7.5	945	12 x 2	Mazatrol T+	88# x 2	5	Both heads: X,Z,C	30 HP + full C axis
Mazak	Multiplex 630	7.5	945	12 x 2	Fusion 640T	66# x 2	5	Both heads: X,Z,C	30 HP + full C axis
Mazak	Multiplex 6300Y	10	1181	12 x 2	Fusion 640T	44# x 2	4	Both heads: X,Y,Z,C	30 HP + full C axis
Mazak	Cybertech 4500M	15		12	Mazatrol	–		X,Z,C	Programmable Steady Rest and Tail Stock, Auto Boring Tool Changer
Mazak	Quick Turn 350-ll MSY	10	1181	12	Mazatrol Matrix	–	4	X,Z,Z,C W-C2	Sub Spindle
Mazak	QTN-450-II-M	10	1181	12	Mazatrol Matrix	–	5	X,Z,C	Live Tailstock uses #5MT dead center
Mazak	Mega Turn 900M	10		24	Matrix Nexus	NA		X,Z	NA

For more information check out the Mazak USA website.
Full Facilities List also available.
